### 환경
- Rocky Linux release 8.10
- HAProxy
### 구성
- VIP 192.168.56.182
- HAProxy 192.168.56.180
- HAProxy 192.168.56.181
## HAProxy 설치
```
sysctl -w net.ipv4.tcp_keepalive_time=110 // TCP 연결이 유휴 상태가 된 후 처음 keepalive 패킷을 보내기까지의 시간(초 단위)
sysctl -w net.ipv4.tcp_keepalive_intvl=30 // keepalive 패킷 사이의 간격을 설정
sysctl -w net.ipv4.tcp_keepalive_probes=3 // keepalive 탐지 패킷의 최대 수를 설정
yum -y install make gcc perl pcre-devel zlib-devel openssl-devel libgudev1 systemd-devel rsyslog socat nc
yum install lua
sudo mkdir -p /var/log/haproxy
sudo mkdir /var/run/haproxy
groupadd --gid 1555 haproxy
useradd -M -s /sbin/nologin -g haproxy -u 1555 haproxy
sudo chown haproxy:haproxy /var/log/haproxy
sudo chown haproxy:haproxy /var/run/haproxy
**로그 설정**
vi /etc/rsyslog.d/haproxy.conf
# Collect log with UDP
$ModLoad imudp
$UDPServerAddress 127.0.0.1
$UDPServerRun 514
# Creating separate log files based on the severity
local0.* /var/log/haproxy/haproxy-traffic.log
local0.notice /var/log/haproxy/haproxy-admin.log
**HAProxy 설치후 다운**
systemctl restart rsyslog.service
wget https://www.haproxy.org/download/2.5/src/haproxy-2.5.14.tar.gz
make install
wget https://www.haproxy.org/download/2.5/src/haproxy-2.5.14.tar.gz
yum install wget
cd /data/
cd haproxy-2.5.14/
make TARGET=linux-glibc USE_PCRE=1 USE_OPENSSL=1 USE_ZLIB=1 USE_SYSTEMD=1 USE_PROMEX=1
make install
haproxy -vv
make admin/halog/halog
cp admin/halog/halog /usr/local/sbin/
cd admin/halog/
touch haproxy.log
halog -srv -H < haproxy.log | column -t
/usr/local/sbin/haproxy -v
curl "http://git.haproxy.org/?p=haproxy-2.3.git;a=blob_plain;f=contrib/systemd/haproxy.service.in" -o /etc/systemd/system/haproxy.service
**Systemctl 등록**
vi /etc/systemd/system/haproxy.service
[Unit]
Description=HAProxy Load Balancer
After=network-online.target
Wants=network-online.target
[Service]
EnvironmentFile=-/etc/default/haproxy
EnvironmentFile=-/etc/sysconfig/haproxy
Environment="CONFIG=/etc/haproxy/haproxy.cfg" "PIDFILE=/run/haproxy.pid" "EXTRAOPTS=-S /run/haproxy-master.sock"
ExecStartPre=/usr/local/sbin/haproxy -Ws -f $CONFIG -c -q $EXTRAOPTS
ExecStart=/usr/local/sbin/haproxy -Ws -f $CONFIG -p $PIDFILE $EXTRAOPTS
ExecReload=/usr/local/sbin/haproxy -Ws -f $CONFIG -c -q $EXTRAOPTS
ExecReload=/bin/kill -USR2 $MAINPID
KillMode=mixed
Restart=always
SuccessExitStatus=143
Type=notify
# The following lines leverage SystemD's sandboxing options to provide
# defense in depth protection at the expense of restricting some flexibility
# in your setup (e.g. placement of your configuration files) or possibly
# reduced performance. See systemd.service(5) and systemd.exec(5) for further
# information.
# NoNewPrivileges=true
# ProtectHome=true
# If you want to use 'ProtectSystem=strict' you should whitelist the PIDFILE,
# any state files and any other files written using 'ReadWritePaths' or
# 'RuntimeDirectory'.
# ProtectSystem=true
# ProtectKernelTunables=true
# ProtectKernelModules=true
# ProtectControlGroups=true
# If your SystemD version supports them, you can add: @reboot, @swap, @sync
# SystemCallFilter=~@cpu-emulation @keyring @module @obsolete @raw-io
[Install]
WantedBy=multi-user.target
cd /etc
mkdir haproxy
vi /etc/haproxy/haproxy.cfg
--
global
log 127.0.0.1:514 local2
chroot /
external-check
insecure-fork-wanted
stats socket /var/run/haproxy/stats.sock mode 660 group haproxy level admin expose-fd listeners
stats timeout 30s
pidfile /var/run/haproxy/haproxy.pid
ulimit-n 655350
maxconn 100000
user haproxy
group haproxy
daemon
nbthread 4
defaults
mode http
log global
option tcplog
option dontlognull
option tcpka
timeout queue 1m
timeout connect 5s
timeout client 480m
timeout server 480m
timeout check 5s
listen stats
bind *:9400
mode http
option dontlog-normal
stats enable
stats realm Haproxy\ Statistics
stats uri /haproxy
http-request use-service prometheus-exporter if { path /metrics }
frontend http-front
bind *:80
mode http
default_backend http-backend
backend http-backend
balance roundrobin
mode http
option forwardfor
option httpchk GET /
http-check expect string OK
http-request set-header X-Forwarded-Port %[dst_port]
server server1 192.168.56.180:{port} check inter 1s fastinter 500ms rise 1 fall 1 weight 1
server server2 192.168.56.180:{port} check inter 1s fastinter 500ms rise 1 fall 1 weight 1
sudo lsof -i :80
systemctl daemon-reload
systemctl enable haproxy
systemctl start haproxy
/var/log/haproxy log경로
vi /etc/rsyslog.conf
*.info;mail.none;authpriv.none;cron.none;local2.none /var/log/messages
======================
keepalive
echo 'net.ipv4.ip_nonlocal_bind=1' >> /etc/sysctl.conf
yum install keepalived
sudo sysctl -p
### HAProxy Active
global_defs {
router_id java_L4_A
}
# haproxy process를 체크하여 down되면 priority 값을 60 줄임 (150-60=90)
# 따라서 haproxy가 down되면 HAProxy_L4_B의 값 100 보다 10이 작게 되어 HAProxy_L4_B가 Active됨
vrrp_track_process track_haproxy {
process haproxy
weight -60
}
# nopreempt 옵션을 이용하여 자동 failback 안되도록 구성
# nopreempt 사용시 state를 `BACKUP` 으로 설정해야 함
# HAProxy_L4_A를 Active로 설정하려면 HAProxy_L4_B의 keepalived를 stop or restart 하면 됨
vrrp_instance VI_1 {
state MASTER
interface enp0s3
virtual_router_id 144
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass java_171
}
virtual_ipaddress {
192.168.56.182
}
track_process {
track_haproxy
}
}
### HAProxy Standby
global_defs {
router_id java_L4_B
}
vrrp_track_process track_haproxy {
process haproxy
weight -60
}
vrrp_instance VI_1 {
state BACKUP
interface enp0s3
virtual_router_id 144
priority 99 # 우선순위 마스터보다 낮게
advert_int 1
authentication {
auth_type PASS
auth_pass java_171
}
virtual_ipaddress {
192.168.56.182
}

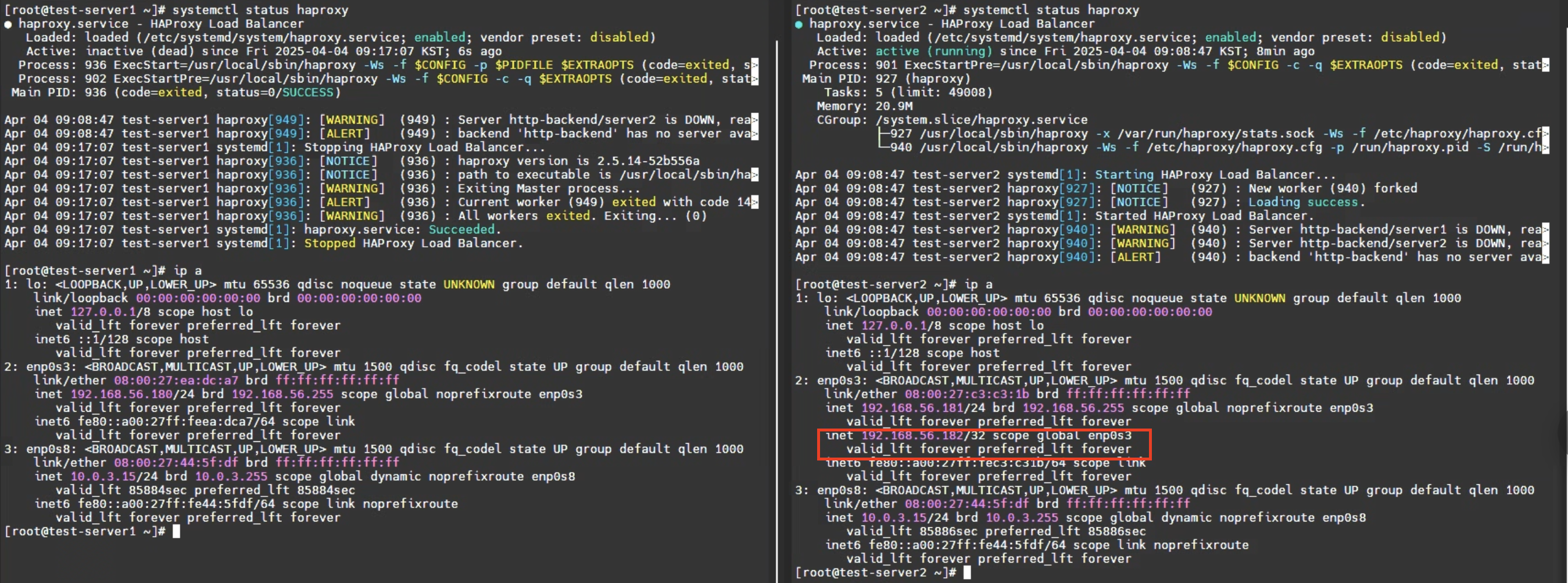

}failovertest
server1 장애 발생하였다고 가정
